Ball Valve Manufacturer

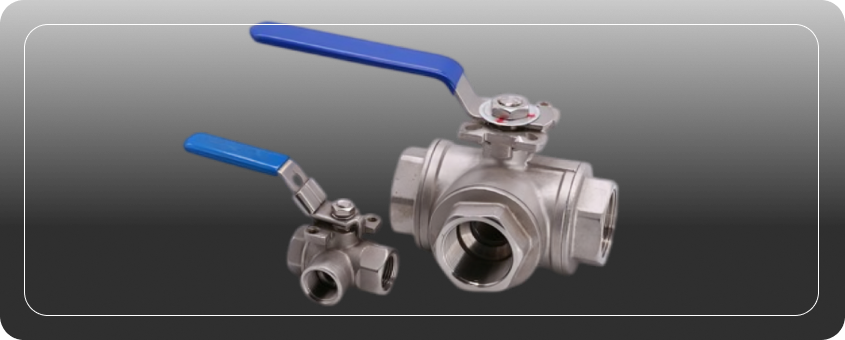

At Steel Icon Stainless Pvt. Ltd., we are a leading manufacturer of industrial Ball Valves, designed for high-performance fluid control across a range of critical industries. Ball valves are quarter-turn shutoff devices that use a hollow, perforated ball to control flow—offering fast operation, minimal pressure loss, and reliable sealing.
Our ball valves are manufactured using high-grade materials like Stainless Steel 304/316, CF8M, WCB, Duplex, and Inconel, and are available in a variety of end connections such as flanged, socket weld, butt weld, and threaded types. Built to meet or exceed API 608, ASME B16.34, BS 5351, and ISO 5211 standards, these valves are widely used in oil & gas, water systems, chemical processing, power generation, HVAC, and food-grade pipelines.
Why Choose Our Ball Valves?
- Fast, reliable shut-off with quarter-turn operation
- Suitable for gases, liquids, steam, slurries, and corrosive media
- Long-lasting leak-proof performance with soft or metal seats
- Compact, lightweight, and easy to install and automate
- Available in full bore and reduced bore configurations for different flow conditions
- Fire-safe, anti-static, and blowout-proof stem options available
| Products |
|---|
|
Stainless Steel Bar |
|
Fasteners |
|
Forged Products |
|
Flanges |
|
Forged Fittings |
|
Stainless Steel Billets |
|
Round Corner Square Billets |
|
Stainless Steel Pipes |
|
Pipe Fittings |
|
Valve |
Technical Specifications
| Parameter | Details |
|---|---|
|
Valve Size Range |
½” to 12” (larger sizes on request) |
|
Pressure Ratings |
ANSI 150–2500 / PN10–PN160 |
|
Temperature Range |
–29°C to +250°C (varies by seat material) |
|
Body Materials |
SS 304, SS 316, WCB, CF8M, Alloy 20, Duplex, Inconel |
|
Seat Materials |
PTFE, RPTFE, PEEK, Devlon, Metal Seated |
|
End Connections |
Flanged, Butt Weld, Socket Weld, Threaded (BSP/NPT) |
|
Operation |
Manual Lever, Pneumatic, Electric, Gear Operated |
|
Compliance Standards |
API 608, API 6D, ASME B16.34, BS 5351, ISO 5211 |
|
Design Options |
2-piece, 3-piece, top entry, floating or trunnion mounted |
Chemical Composition (Typical Body Materials)
| Material | Cr (%) | Ni (%) | Mo (%) | C (%) | Other Elements |
|---|---|---|---|---|---|
|
SS 304 |
18–20 |
8–11 |
– |
≤ 0.08 |
Mn, Si, S, P |
|
SS 316 |
16–18 |
10–14 |
2–3 |
≤ 0.08 |
Mn, Si, S, P |
|
CF8M (Cast 316) |
16–18 |
10–14 |
2–3 |
≤ 0.08 |
Equivalent to 316 |
|
WCB (Carbon Steel) |
– |
– |
– |
≤ 0.30 |
Mn, S, P, Fe (Balance) |
|
Duplex 2205 |
21–23 |
4.5–6.5 |
2.5–3.5 |
≤ 0.03 |
N, Mn, Cr (balanced) |
Mechanical Properties
| Material | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
|
SS 304 |
515–750 |
≥ 205 |
≥ 40 |
≤ 201 |
|
SS 316
|
515–750 |
≥ 205 |
≥ 40 |
≤ 201 |
|
WCB |
485–620 |
≥ 250 |
≥ 22 |
143–197 |
|
CF8M |
485–690 |
≥ 240 |
≥ 30 |
≤ 200 |
|
Duplex 2205 |
620–880 |
≥ 450 |
≥ 25 |
170–290 |
Applications
Ball valves are essential in flow systems where fast shutoff, leak-tight performance, and low-pressure drop are critical. They are extensively used in:
- Oil & Gas – Isolation of crude, gas, and condensate lines in refineries and terminals
- Chemical & Petrochemical – Process fluid handling, solvent transfer, CIP/SIP systems
- Water & Wastewater – Distribution lines, filtration units, and effluent discharge
- Food & Beverage – Hygienic pipelines, clean-in-place valves, and bottling plants
- Power Plants – Cooling water control, turbine systems, fuel feed lines
- HVAC Systems – Automated heating/cooling valve controls, chilled water systems
Key Benefits
- Bubble-Tight Shut-Off
- Suitable for both liquid and gaseous applications with zero leakage performance.
- Low Torque Operation
- Even at higher pressures, valves open and close smoothly with minimal resistance.
- Full Bore Option Available
- Ensures zero flow restriction, perfect for slurry or viscous media.
- Long Cycle Life
- Engineered to operate across thousands of on/off cycles without degradation.
- Fire-Safe and Anti-Static Options
- Compliant with fire-safe design specs and explosion-prone area regulations.
- Automation-Ready
- ISO 5211 mounting pad for direct fitting of electric or pneumatic actuators.
Frequently Asked Questions
Explore our FAQs for insights on materials, customization, and delivery.
What’s the difference between floating and trunnion-mounted ball valves?
- Floating: Ball is held in place by seat rings and is suitable for low to medium pressure.
- Trunnion Mounted: Ball is anchored by shaft supports, ideal for high-pressure applications.
Can ball valves be used for throttling or partial flow?
While possible, it’s not recommended, as this can damage the seat. For throttling, use globe or needle valves.
What makes metal-seated ball valves different?
They’re designed for abrasive fluids, high temperatures, or where soft seats may erode, offering a longer lifespan.
Do you offer certifications and documentation?
Yes. All valves are supplied with MTCs, hydrostatic test reports, and third-party inspection if required.
What is the lead time for bulk valve orders?
Standard orders ship within 3-7 days, while custom orders take 7-14 days, depending on requirements.
