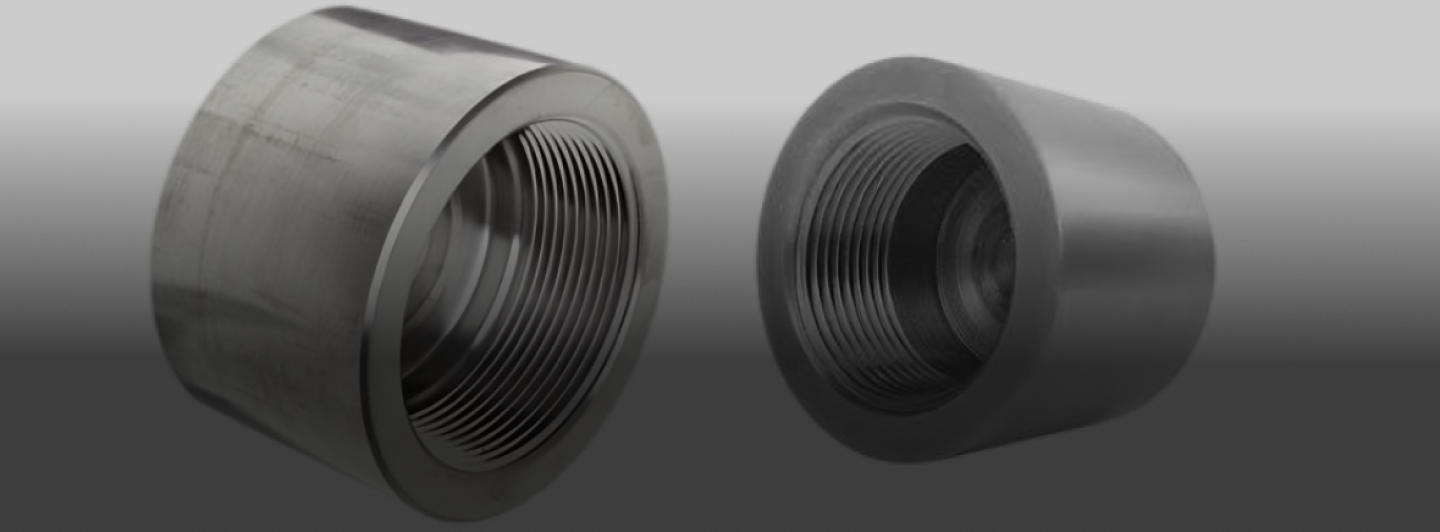

Forged Caps Manufacturer
At Steel Icon Stainless Pvt. Ltd., we are a prominent manufacturer and exporter of forged caps, engineered for securely sealing the ends of piping systems. Designed to withstand high pressure, temperature, and corrosion, our forged caps are ideal for permanent or temporary pipe closures across industries such as oil & gas, chemical, power, marine, and infrastructure.
Manufactured from high-grade stainless steel and duplex alloys, our caps comply with international standards like ASTM, ASME, MSS, and DIN for dimensional precision and leak-proof performance.
What are Forged Caps?
Forged caps are pipe fittings used to close the open end of a pipe, preventing fluid or gas from escaping. These are typically installed via socket weld or threaded connections, offering a secure and maintenance-free seal.
Forged caps are especially useful in systems that require pressure testing, shutoff, or system protection, and are a reliable solution for high-pressure and corrosive environments.
| Products |
|---|
|
Stainless Steel Bar |
|
Fasteners |
|
Forged Products |
|
Flanges |
|
Forged Fittings |
|
Stainless Steel Billets |
|
Round Corner Square Billets |
|
Stainless Steel Pipes |
|
Pipe Fittings |
|
Valve |
Specifications
| Property | Specification |
|---|---|
|
Material Grades |
SS 304, SS 316, SS 321, SS 410, Duplex 2205
|
|
Size Range |
½” to 4”
|
|
Types |
Concentric, Eccentric |
|
Connection Ends |
Socket Weld, Threaded (NPT/BSP) |
|
Pressure Ratings |
Class 2000, 3000, 6000 |
|
Standards |
ASTM A182, ASME B16.11, MSS-SP-79, DIN |
Equivalent Grades
| Grade | UNS | EN / WNR |
|---|---|---|
|
SS 304 |
S30400 |
1.4301 / X5CrNi18-10 |
|
SS 316 |
S31600 |
1.4401 / X5CrNiMo17-12-2 |
|
SS 321 |
S32100 |
1.4541 / X6CrNiTi18-10 |
|
SS 410 |
S41000 |
1.4006 / X12Cr13 |
|
Duplex 2205
|
S31803
|
1.4462 / X2CrNiMoN22-5-3
|
Chemical Composition
| Element | SS 304 | SS 316 |
|---|---|---|
|
Chromium (Cr)
|
18–20% |
16–18% |
|
Nickel (Ni) |
8–10.5% |
10–14% |
|
Molybdenum (Mo)
|
– |
2–3% |
|
Carbon (C max) |
0.08% |
0.08% |
Mechanical Properties
| Property | SS 304 / SS 316 |
|---|---|
|
Tensile Strength (MPa) |
515 – 750 MPa
|
|
Yield Strength (MPa) |
205 – 310 MPa |
|
Elongation (%) |
≥ 30% |
|
Hardness (HRB) |
≤ 95 |

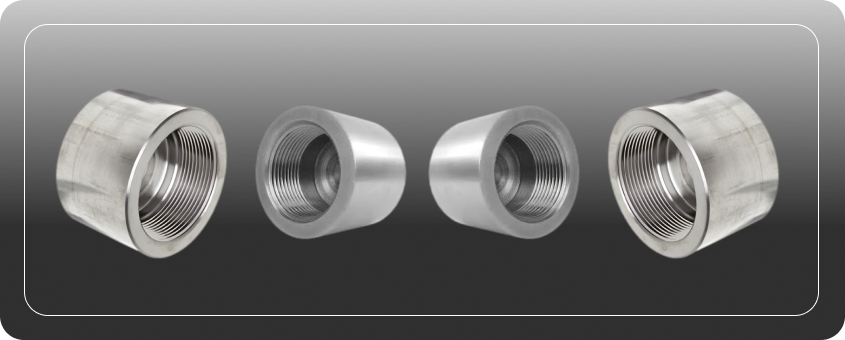

Types of Forged Caps
- Socket Weld Cap – For permanent welding onto pipe ends.
- Threaded Cap – For removable closures on threaded pipes.
- Custom Machined Caps – Made to order for non-standard configurations.
Applications of Forged Caps
- Pipeline End Sealing – Prevents leakage and contamination.
- System Isolation – Used during pressure testing and maintenance.
- Equipment Protection – Seals open pipe connections during idle periods.
- Process Industry – Permanent end closure in fluid handling systems.
- Marine & Offshore – Corrosion-resistant end caps for harsh environments.
Benefits of Forged Caps
- Leak-proof sealing of open pipe ends
- High corrosion and pressure resistance
- Available in threaded or welded versions
- Ideal for shutdowns, testing, and storage
- Long-lasting with minimal maintenance required
Frequently Asked Questions
GET IN TOUCH
Get the Best Forged Products from India's Top Manufacturer
People Also Search For
- Stainless Steel Socket Weld Cap Manufacturer
- SS 316 Threaded Pipe Cap
- ASME B16.11 End Cap Exporter
- High-Pressure Forged Cap Fittings
- Pipe End Sealing Fittings Supplier India
