Forged Tees Manufacturer

At Steel Icon Stainless Pvt. Ltd., we are a trusted manufacturer and exporter of forged tees, engineered to split or combine flow in high-pressure piping systems. Our forged tees offer leak-proof and corrosion-resistant performance, making them ideal for applications across oil & gas, petrochemical, power generation, water treatment, and industrial infrastructure.

Manufactured in stainless steel and duplex grades, our tees conform to ASTM, ASME, MSS, and DIN standards for dimensional accuracy and pressure integrity.

What are Forged Tees?

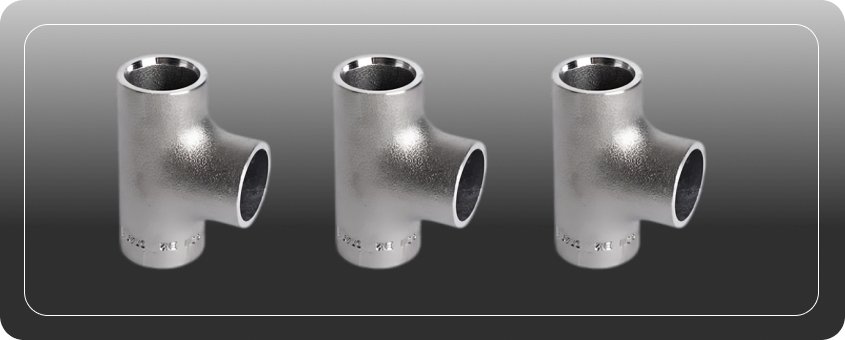

Forged tees are pipe fittings used to divide or merge flow in a pipeline. Shaped like the letter ‘T’, they feature two in-line outlets and one branch at 90°. These fittings are essential for creating branch connections in piping layouts and ensuring smooth fluid distribution.

Forged tees are available in equal and reducing types, with socket weld or threaded ends for versatile installation in compact and high-pressure environments.

Products
Stainless Steel Bar
Fasteners
Forged Products
Flanges
Forged Fittings
Stainless Steel Billets
Round Corner Square Billets
Stainless Steel Pipes
Pipe Fittings
Valve

Specifications

Property	Specification
Material Grades	SS 304, SS 316, SS 321, SS 410, Duplex 2205
Size Range	½” to 4” (SW & Threaded Types)
Types	Equal Tee, Reducing Tee
Connection Ends	Socket Weld, Threaded (NPT/BSP)
Pressure Ratings	Class 2000, 3000, 6000
Standards	ASTM A182, ASME B16.11, MSS-SP-79/95, DIN

Equivalent Grades

Grade	UNS	EN / WNR
SS 304	S30400	1.4301 / X5CrNi18-10
SS 316	S31600	1.4401 / X5CrNiMo17-12-2
SS 321	S32100	1.4541 / X6CrNiTi18-10
SS 410	S41000	1.4006 / X12Cr13
Duplex 2205	S31803	1.4462 / X2CrNiMoN22-5-3

Chemical Composition

Element	SS 304	SS 316
Chromium (Cr)	18–20%	16–18%
Nickel (Ni)	8–10.5%	10–14%
Molybdenum (Mo)	–	2–3%
Carbon (C max)	0.08%	0.08%

Mechanical Properties

Property	SS 304 / SS 316
Tensile Strength (MPa)	515 – 750 MPa
Yield Strength (MPa)	205 – 310 MPa
Elongation (%)	≥ 30%
Hardness (HRB)	≤ 95

Types of Forged Tees

Equal Tee: All three outlets have the same diameter.
Reducing Tee: The branch outlet has a smaller size than the main run.
Socket Weld Tee: Strong welded joint for high-pressure use.

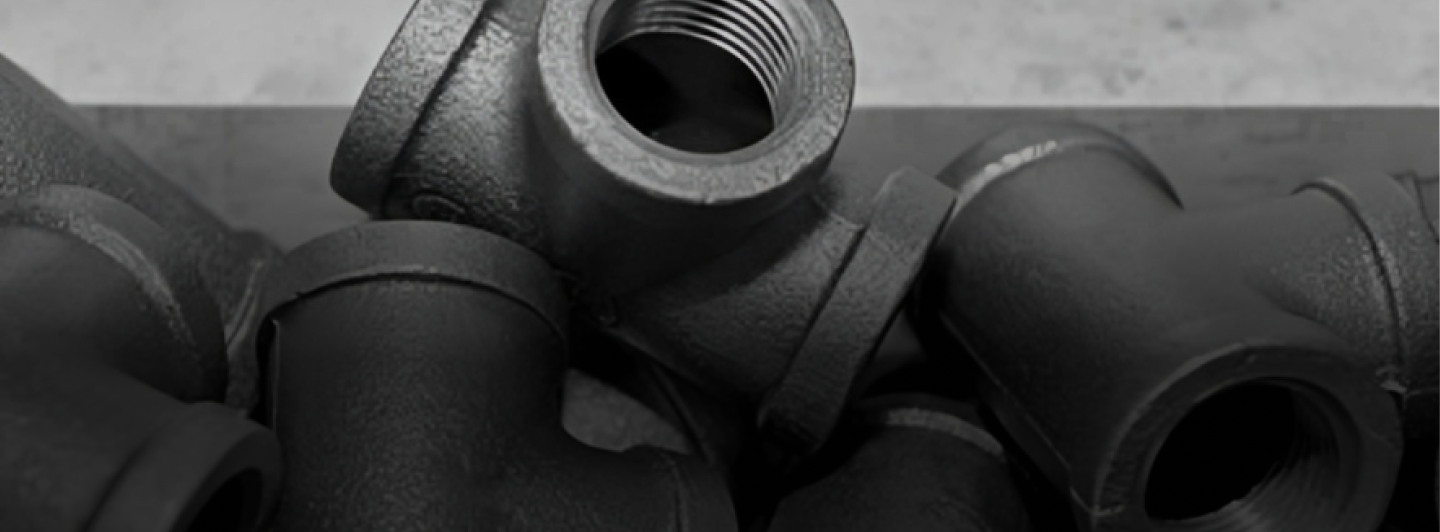

Threaded Tee: Easy to disassemble and suitable for small pipe systems.

Applications of Forged Tees

Oil & Gas Piping Systems: Branch lines and flow divisions.
Chemical Plants: Fluid handling in complex piping networks.
Water Treatment Facilities: Distributing treated or process water.
Power Stations: Auxiliary line connections and system branches.
Marine Engineering: Compact layouts requiring corrosion-resistant tees.

Benefits of Forged Tees

Withstands high pressure and temperature
Easy to install in threaded or welded systems
Durable and corrosion-resistant in harsh media
Available in both equal and reducing designs
Long service life with minimal maintenance

Frequently Asked Questions

Explore our FAQs for insights on materials, customization, and delivery.

What is the function of a forged tee in a piping system?

Forged tees divide or merge fluid flow between three connected pipes.

Are reducing tees available in socket weld and threaded forms?

Yes, both equal and reducing tees are offered in SW and threaded ends.

What pressure classes do your tees support?

We provide forged tees in Class 2000, 3000, and 6000.

Can forged tees be customized?

Absolutely. We offer custom bore sizes, branch combinations, and markings as needed.
