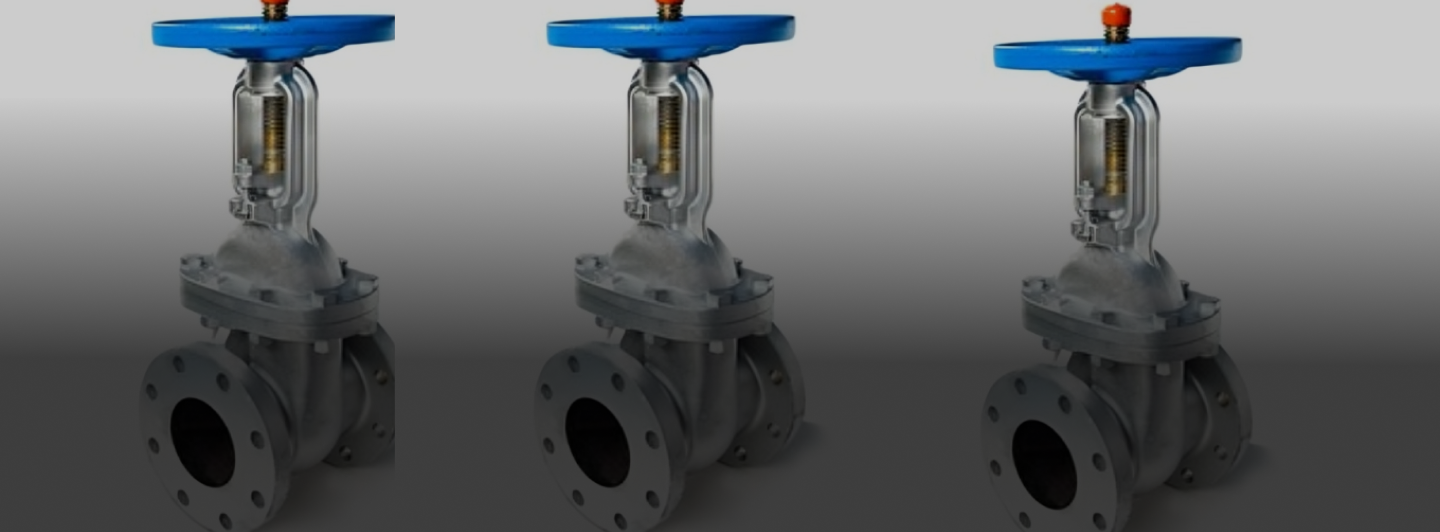

Gate Valve Manufacturer

At Steel Icon Stainless Pvt. Ltd., we are a leading manufacturer of industrial Gate Valves, offering high-strength isolation solutions for large-diameter and high-pressure pipeline systems. Gate valves are designed to allow unrestricted, full-bore fluid flow when fully open and tight shut-off when closed. Their design eliminates flow resistance and is ideal for systems that require minimal pressure drop and infrequent operation.

We manufacture rising stem and non-rising stem gate valves in solid wedge, flexible wedge, and parallel slide designs, available in flanged, socket weld, butt weld, and threaded ends. Complying with API 600, ASME B16.34, BS 1414, and DIN standards, our gate valves are trusted across refineries, power plants, water systems, and marine engineering.

Why Choose Our Gate Valves?

Designed for full-flow isolation, minimizing turbulence and energy loss
Reliable sealing over long service cycles with metal-to-metal or soft seat options
Suitable for horizontal or vertical installation
Available with manual, pneumatic, electric, or gear-operated actuators
Offered in API trim sets for standard and corrosive media

Products
Stainless Steel Bar
Fasteners
Forged Products
Flanges
Forged Fittings
Stainless Steel Billets
Round Corner Square Billets
Stainless Steel Pipes
Pipe Fittings
Valve

Technical Specifications

Parameter	Details
Size Range	2” to 48” (custom sizes available)
Pressure Ratings	ANSI 150–2500 / PN10–PN160
Body Materials	WCB, CF8, CF8M, SS 304/316, Alloy 20, Duplex, Inconel
Trim Materials	13Cr, SS, Stellite, Monel
Seat Type	Renewable, Welded, Soft Seat
End Connections	Flanged (RF/RTJ), Butt Weld, Socket Weld, Threaded
Operation	Manual Lever, Pneumatic, Electric, Gear Operated
Bonnet Type	Bolted, Pressure Seal, Welded
Standards	API 600, ASME B16.34, BS 1414, DIN EN 1984

Chemical Composition (Typical Body Materials)

Material	Cr (%)	Ni (%)	Mo (%)	C (%)	Others
WCB	–	–	–	≤ 0.30	Mn, Si, Fe (balance)
SS 304	18–20	8–11	–	≤ 0.08	Mn, Si, S, P
SS 316	16–18	10–14	2–3	≤ 0.08	Mn, Si, S, P
CF8M	16–18	10–14	2–3	≤ 0.08	Cast 316 equivalent
Duplex 2205	21–23	4.5–6.5	2.5–3.5	≤ 0.03	N, Mn, Cr

Mechanical Properties

Material	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)
WCB	485–620	≥ 250	≥ 22	143–197
SS 304	515–750	≥ 205	≥ 40	≤ 201
SS 316	515–750	≥ 205	≥ 40	≤ 201
CF8M	485–690	≥ 240	≥ 30	≤ 200
Duplex 2205	620–880	≥ 450	≥ 25	170–290

Applications

Gate valves are ideal for systems that require complete fluid isolation with minimal flow resistance, including:

Oil & Gas Pipelines – Block valve for long-distance transport and distribution
Water Treatment & Distribution – Isolation valve for potable, industrial, and irrigation lines
Power Plants – Steam, feedwater, and cooling systems
Petrochemical Plants – Process fluid cut-off valves
Marine & Offshore – For seawater intake and ballast systems
Industrial Infrastructure – Plant shutdown valves and main line isolators

Key Benefits

Full Bore Flow Path – Supports cleaning pigs and reduces pressure drop
Bidirectional Sealing – Ensures tight closure in either flow direction
Low Maintenance Design – Fewer parts reduce downtime and wear
Customizable with Fire-Safe & Cryogenic Features
Wide Material Availability – Suitable for corrosive, abrasive, and clean media

Frequently Asked Questions

Explore our FAQs for insights on materials, customization, and delivery.

Can gate valves be used for throttling?

No. Gate valves are best used in fully open or closed positions. Throttling causes wear and flow instability.

What stem type should I choose?

Rising Stem: Visual position indication
Non-Rising Stem: Best for underground or confined spaces

Are your gate valves API 600 certified?

Yes, we manufacture gate valves compliant with API 600 and API 6D with full inspection and documentation.

Do you provide actuated gate valves?

Yes. Options include electric, pneumatic, and hydraulic actuators with ISO or customized interfaces.

What is the lead time for bulk valve orders?

Standard orders ship within 3-7 days, while custom orders take 7-14 days, depending on requirements.
