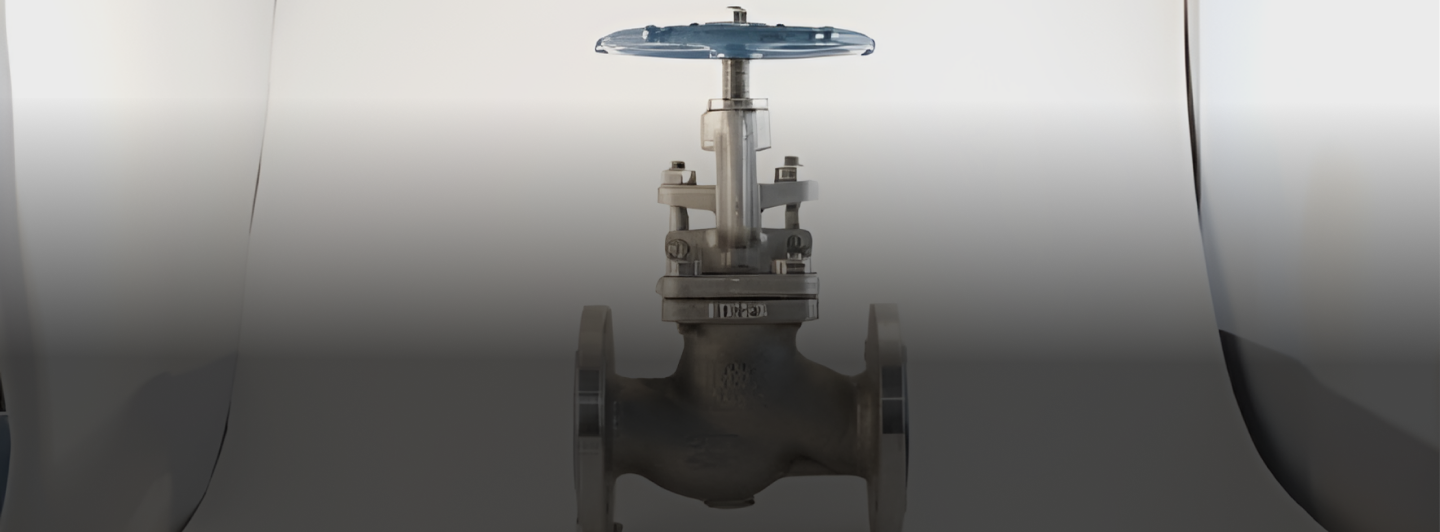

Globe Valve Manufacturer

At Steel Icon Stainless Pvt. Ltd., we are an experienced manufacturer of Globe Valves, offering precision-engineered solutions for accurate fluid flow control and shut-off in complex piping systems. Globe valves are particularly effective for throttling applications, allowing for gradual, regulated flow rather than just open or closed states. With linear motion and top-guided disc movement, they offer tight sealing and superior modulation capability.

We offer globe valves in various body designs including T-pattern (standard), Y-pattern (for reduced pressure drop), and Angle-pattern, all conforming to API 623, BS 1873, ASME B16.34, and EN 13709 standards. Our globe valves are manufactured using stainless steel, carbon steel, duplex, and exotic alloys, serving industries such as power generation, petrochemicals, pharmaceuticals, food processing, and water treatment.

Why Choose Our Globe Valves?

Optimized for precise flow control and modulation
Tight shut-off performance with hard or soft seats
Excellent for frequent opening and closing cycles
Available in bolted bonnet, pressure seal, and bellow-sealed designs
Compatible with manual, electric, and pneumatic actuators
Suitable for high-pressure and high-temperature environments

Products
Stainless Steel Bar
Fasteners
Forged Products
Flanges
Forged Fittings
Stainless Steel Billets
Round Corner Square Billets
Stainless Steel Pipes
Pipe Fittings
Valve

Technical Specifications

Parameter	Details
Size Range	½” to 24” (custom builds up to 36”)
Pressure Ratings	ANSI 150–2500 / PN10–PN160
Body Materials	WCB, CF8, CF8M, SS 304/316, Alloy 20, Hastelloy, Inconel
Disc/Seat Options	SS, Stellite, PTFE, EPDM, Metal-to-Metal
Design Types	T-Pattern, Y-Pattern, Angle-Pattern
Bonnet Type	Bolted, Welded, Pressure Seal, Bellow Sealed
End Connections	Flanged, Butt Weld, Socket Weld, Threaded
Standards	BS 1873, API 623, ASME B16.34, DIN EN 13709, EN 558

Chemical Composition (Typical Body Materials)

Material	Cr (%)	Ni (%)	Mo (%)	C (%)	Others
SS 304	18–20	8–11	–	≤ 0.08	Mn, Si, S, P
SS 316	16–18	10–14	2–3	≤ 0.08	Mn, Si, S, P
WCB	–	–	–	≤ 0.30	Mn, Si, Fe
CF8M	16–18	10–14	2–3	≤ 0.08	Cast 316 equivalent
Alloy 20	19–21	32–38	2–3	≤ 0.07	Cu, Mn, Si

Mechanical Properties

Material	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)
SS 304	515–750	≥ 250	≥ 40	≤ 201
SS 316	515–750	≥ 205	≥ 40	≤ 201
WCB	485–620	≥ 250	≥ 22	143–197
Alloy 20	620–860	≥ 240	≥ 30	≤ 200

Applications

Globe valves are widely used in flow systems requiring precise control, variable flow, and reliable sealing:

Steam Systems – For modulating steam flow in boilers and turbines
Chemical & Petrochemical – Precise control of acids, bases, and solvents
Power Generation – Regulating condensate return, feedwater, and auxiliary steam
Thermal Oil & Hot Water Systems – Durable under high-temperature cycling
Water & Wastewater Treatment – Flow throttling in dosing and filtration processes
Pharmaceutical & Food Processing – Clean flow control for sterile environments

Key Benefits

Excellent Flow Regulation – Offers consistent control even under varying system pressures and temperatures.
Positive Shut-Off = Metal or resilient seat options provide leak-free sealing under full load.
Design Flexibility – Multiple body styles allow for space-saving installation and reduced head loss.
Stem and Packing Durability – Hard-faced stems, gland packing, and optional bellows extend operational life.
Actuator Ready – Designed for electric, pneumatic, or hydraulic automation systems.

Frequently Asked Questions

Explore our FAQs for insights on materials, customization, and delivery.

What makes a globe valve suitable for flow regulation?

Its linear disc motion and perpendicular flow path create more precise control over flow rate compared to gate or ball valves.

Can globe valves be used with corrosive fluids?

Yes. With materials like SS 316, Alloy 20, and Hastelloy, they perform well with acids and aggressive chemicals.

What’s the advantage of a Y-pattern globe valve?

It offers lower pressure drop and is more compact than T-pattern globe valves—ideal for steam and thermal fluid systems.

Do you offer bellow seal globe valves?

Yes. For zero stem leakage in hazardous or toxic service, bellow-sealed valves are available.
