Round Cornered
Squares (RCS) Manufacturer
At Steel Icon Stainless Pvt. Ltd., we are a premier manufacturer and exporter of Round Cornered Squares (RCS), specially designed to serve as high-quality input materials for hot forging, rolling, re-rolling, and extrusion applications. Manufactured using continuous casting or hot rolling processes, our RCS products offer superior dimensional accuracy, clean surface finish, and structural uniformity.
We provide RCS in a wide variety of stainless steel, carbon steel, alloy steel, and duplex grades, compliant with international standards such as ASTM, DIN, EN, and IS. Our products are trusted across automotive, engineering, oil & gas, construction, and tool manufacturing industries.
What is RCS (Round Cornered Squares)?

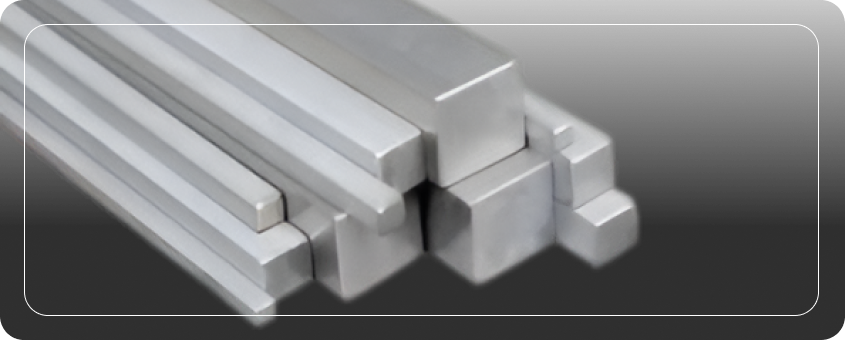

Round Cornered Squares (RCS) are semi-finished long products featuring a square cross-section with slightly rounded edges. This shape improves metal flow during forging, enhances fatigue resistance, and reduces tool wear.
RCS is preferred in closed-die forging, re-rolling, and metal forming processes, as it allows better filling of dies and more consistent deformation compared to sharp-edged billets.
| Products |
|---|
|
Stainless Steel Bar |
|
Fasteners |
|
Forged Products |
|
Flanges |
|
Forged Fittings |
|
Stainless Steel Billets |
|
Round Corner Square Billets |
|
Stainless Steel Pipes |
|
Pipe Fittings |
|
Valve |
Product Specifications
| Property | Specification |
|---|---|
|
Material Grades |
SS 304, SS 316, SS 321, SS 410, SS 430, Duplex, CS, MS
|
|
Cross-Section Sizes |
90×90 mm, 100×100 mm, 125×125 mm, 160×160 mm |
|
Length |
3 to 12 meters (custom lengths available) |
|
Corner Radius |
R2 to R8 mm (adjustable based on application) |
|
Surface Finish |
As Rolled, Pickled, Machined (on request) |
|
Standards |
ASTM A484, DIN 1013, IS 2830, EN 10025 |
Available Grades
- Stainless Steel: SS 304, 316, 321, 410, 430
- Duplex & Super Duplex: 2205, 2507
- Carbon Steel / Mild Steel: IS 2062, EN8, EN9, C20, C45
- Alloy Steel: 20MnCr5, EN24, 42CrMo4, AISI 4140
Chemical Composition (Typical Values)
| Element | SS 304 (%) | SS 316 (%) |
|---|---|---|
|
Carbon (C)
|
0.08 max |
0.08 max |
|
Chromium (Cr) |
18.0 – 20.0 |
16.0 – 18.0 |
|
Nickel (Ni) |
8.0 – 10.5 |
10.0 – 14.0 |
|
Molybdenum (Mo) |
– |
2.0 – 3.0 |
Mechanical Properties (Typical Range)
| Property | SS 304 / SS 316 |
|---|---|
|
Tensile Strength (MPa) |
515 – 750 MPa |
|
Yield Strength (MPa) |
205 – 310 MPa |
|
Elongation (%) |
≥ 30% |
|
Hardness (HRB) |
≤ 95 |
Applications
- Forging Industry – Input for forged components like flanges, bars, and gears
- Re-Rolling Mills – Feedstock for TMT bars, angles, and channels
- Tool Manufacturing – Tool blanks, die blocks, and press components
- Automotive – Shafts, axles, and connecting rods
- Heavy Engineering – Load-bearing and machine-building components
Benefits
- Better die filling during forging
- Improved metal flow and deformation control
- Reduced tool wear and longer die life
- High consistency and dimensional precision
- Compatible with automation in modern forging setups
