| Size: |
6mm to 500mm
|

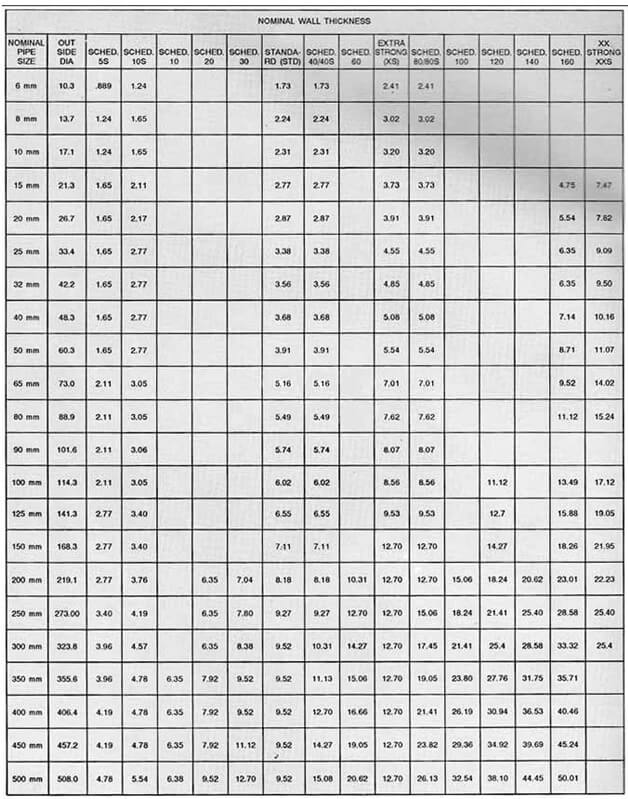

| Thickness: |
Sch 5, 10, 40
|
| Specification: |
202, 304, 304L, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430
|
| Size | 1/4" NB TO 24" NB IN Sch 40,60,80,120,160 & XXS. (Carbon steel) |

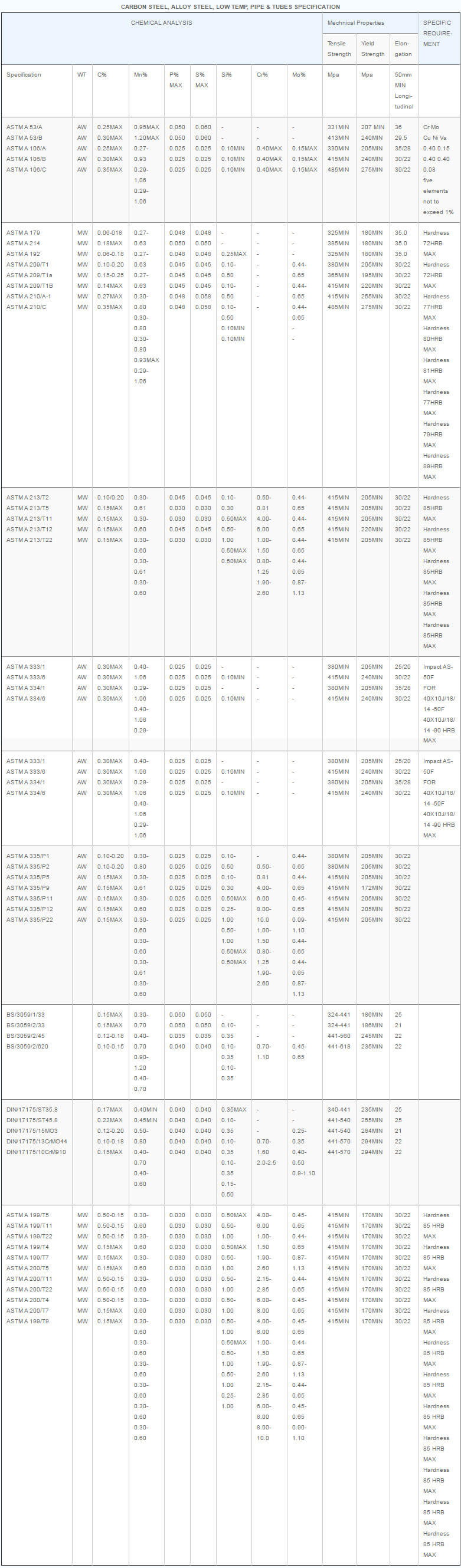

| Carbon Steel: Specifications |
ASTM A 53, A 106, A 179, API 5L/5LX, BSS, 3059, 182, 806, 3601, 3602, DIN 17175. 2448 etc. |
1. Weight of Stainless Steel Pipes & Tubes
OD(mm)-W.T. (mm) x W.T.(mm)x0.02466=Kg.per Mtr.
2. Sheet Width Required for rolled and welded pipes
O.D.(mm) - THK(mm) x 3.14=SheetWidth
3. Weight of Stainless Steel Sheets
Length (mtr.) x Wdth(mtr.) x Thk(mm)x8=Kg Per Sheet
4. Weight of Stainless Steel Circle & Blanks
OD(mm) x OD>(mm) x Thk(mm)/160/1000=Kg Per Pcs.
5. Weight of Stainless Steel Rounds
Dia.(mm)xdia.(mm) x 0.00623=PerMtr.
6. Weight of Stainless Steel Hexagonal Rods
Dia.(mm)xDia.(mm) x 0.00679=PerMtr.
7. Weight of Stainless Steel Square Bars
Dia.(mm)xDia.(mm) x 0.00787=PerMtr.
8. Weight of Carbon Steel Pipes & Tubes
Dia.(mm)-W.T.(mm) XW.T.(mm) x 0.02466=Kg.PerMtr.
9. Weight of Carbon Steel Sheets & Plates
Length (mtr.) x Wdth(mtr.) x Thk(mm) x 7.85=Kg Per Sheet
10. Weight of Copper Pipes
OD(mm)-W.T. (mm) X W.T.(mm) x 0.0256=Kg.per Mtr.
11. Weight of Lead Pipes(appro.)
OD(mm)-W.T. (mm) XW.T.(mm) x 0.0345=per Mtr.
12. Weight of Lead Sheets(appro.)
Length (mtr.) XWidth(mtr.) XThk(mm) x 11.2=Kg Per Sheet
13. Weight of Alluminium Pipes(appro.)
OD(mm)-W.T. (mm) XW.T.(mm) x 0.0082=Kg per Mtr.
14. Weight of Alluminium Sheets(appro.)
Length (mtr.) X Width(mtr.) X Thk(mm) x 2.66=Kg Per Sheet
Tensile Strength Conversion Table
1. Kg/mm2 x 9.81 = N/mm2=MPa
2. PSi x 0.0007 = Kg/mm2
3. KSi x 1000 = PSi
4. Kg/mm2 x 1.422 = KSi
